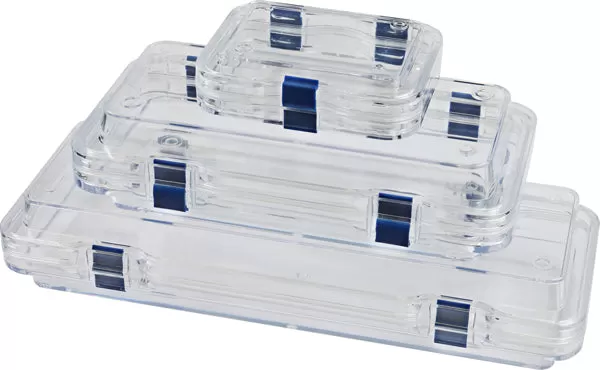

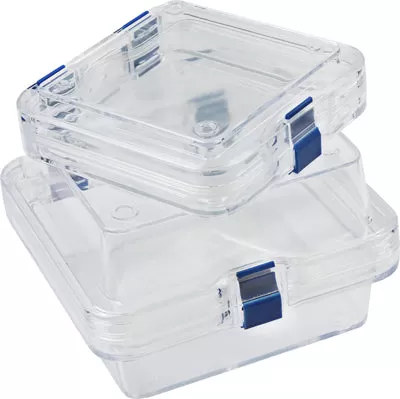

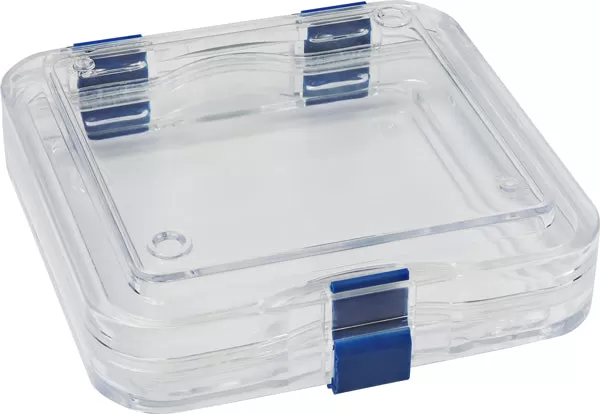

DESCRIPTION Gel-Pak® Membrane Boxes are recommended for devices or large objects that have an irregular shape or non-flat contact surface which will not adhere to our Gel material. Membrane Boxes are constructed using a thin, highly elastic transparent polyether polyurethane membrane mounted to the top and bottom halves of a symmetrical clear polystyrene box. When the box is closed, the device is suspended between the two transparent membranes which conform to the device shape and securely hold it in place. The high optical transparency of the membrane box packaging allows for inspection and visual checks without having to open up the box. The membrane boxes are reusable and come in a wide range of shapes and sizes. Gel-Pak® Membrane Boxes are manufactured in a Class 10,000 Cleanroom and are shipped in cleanroom packaging. Product Number
Color
Box Size (External)
Usable Area (Internal Approximate) MB-38T-16
Transparent
38 x 38 x 16mm
31 x 31 x 14mm MB-55T-25 Transparent
55 x 55 x 25mm
42 x 42 x 20mm MB-100T-30 Transparent
100 x 100 x 30mm
90 x 82 x 25mm MB-100T-50 Transparent
100 x 100 x 50mm
90 x 82 x 45mm MB-100x75T-30
Transparent
100 x 75 x 30mm
90 x 61 x 25mm MB-125T-50 Transparent
125 x 125 x 50mm
100 x 100 x 46mm MB-125T-75
Transparent
125 x 125 x 75mm
97.5 x 97.5 x 70mm MB-125x100T-30
Transparent
125 x 100 x 30mm
116 x 82 x 25mm MB-150T-100
Transparent
150 x 150 x100mm
125 x 125 x 95mm MB-200x100T-50 Transparent
200 x 100 x50mm
188 x 83 x 45mm MB-250x200T-50
Transparent
250 x 200 x 50mm
223 x 173 x 45mm MB-275x100T-50 Transparent
275 x 100 x 50mm
245 x 75 x 45mm Membrane Physical Properties Membrane Chemical Properties Property
Test Method
Nominal Value
Waterproof and Breathable Hardness
ASTM D2240
85 Shore A
Low Temperature Capability to -30ºC Specific Gravity
ASTM D729
1.12
No Plasticizer, No Migration Tensile Strength
ASTM D412
445 kg/cm2
Simple Molecular Structure: C, H, O, N Elongation
ASTM D412
515%
Excellent Hydrolysis Resistance: > 2 years 300% Modulus
ASTM D412
80 kg/cm2
Excellent Fungus Resistance Tear Strength
ASTM D1004
100 kg/cm2 Melting Point 150º C UV Stability
ASTM D1148
4-5 Grade
