Description

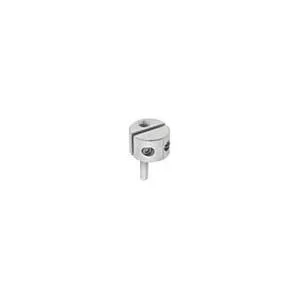

DESCRIPTION SEM Pin Mount Specimen Holders for Scanning Electron Microscopy A large selection of SEM specimen holders for SEMs, FESEMs, and FIB systems, which are using the standard 3.2mm (1/8″) pin type mount. Some of the larger holders require a larger specimen chamber and a larger stage. Depending on the available distance, Z-movement and maximum specimen height provided by the specimen stage in the SEM, pin stub extenders might be added to obtain the optimized working height. See Hitachi M4 Holders if you have a Hitachi SEM, FESEM, or FIB system. These specimen holders can also be used on JEOL SEMs if a pin mount adapter to JEOL cylinder mount is used (#15362, #15362-12, #15362-15, #16153-9, or #16216-9). Used on FEI/Philips, ZEISS, LEO, Leica, Cambridge Instruments, CamScan and Tescan SEMs 15mm (0.59″) dia., 3.2mm (1/8″) dia. pin pin length 14.3mm (9/16″) Opens to 3.75mm (3/8″). Height of head is 10.2mm (0.4″) and split is centered. Pin is off-center. Material: machined aluminum with two stainless steel allen set screws. Allen wrench included. Screw used is 2-56 x 1/4 Hex Soc, Set, SS
