DESCRIPTION QUANTIFOIL® TEM Substrates Support Grids or Substrates for Transmission Electron Microscopy Quantifoil® Holey Carbon Film is a perforated support foil with a p re-defined hole size, shape and arrangement. They are offered with circular and square, orthogonally arranged holes. The film is mounted on a standard Ø3mm Cu, Au, or Ni TEM grid with 200, 300 or 400 mesh. They have advantages in electron microscopy (EM) or low-energy electron point source (LEEPS) microscopy when compared with conventional holey film. The final thickness of the foil is about 20nm, although only 10nm of carbon is evaporated onto the plastic. Four reasons to use Quantifoil®: With the known size of the pore of the Quantifoil®, one can estimate the size of a particle observed directly.
With the defined size and pitch of the holes in the Quantifoil® one can use automated electron microscopy for the first time.
The Quantifoil® 7/2 gives a good portion of “free” area.

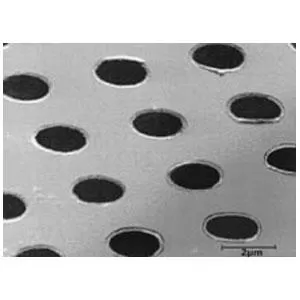

Hole size and hole distribution uniform over a wide range. PELCO® Technical Notes, Quantifoil® SubstratesQuantifoil® Orthogonal Array of 2µm Diameter Holes with about 2µm Separation – (R 2/2) 657-200-CU – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 200M Cu grid, package of 10 grids,pkg/10 657-300-CU – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 300M Cu grid, package of 10 grids,pkg/10 657-400-CU – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 400M Cu grid, package of 10 grids,pkg/10 657-200-AU – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 200M Au grid, package of 10 grids,pkg/10 657-300-AU – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 300M Au grid, package of 10 grids,pkg/10 657-400-AU – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 400M Au grid, package of 10 grids,pkg/10 657-200-NI – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 200M Ni grid, package of 10 grids,pkg/10 657-300-NI – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 300M Ni grid, package of 10 grids,pkg/10 657-200-CU-100 – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 200M Cu grid, package of 100 grids,pkg/100 657-300-CU-100 – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 300M Cu grid, package of 100 grids,pkg/100 657-400-CU-100 – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 400M Cu grid, package of 100 grids,pkg/100 657-200-AU-100 – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 200M Au grid, package of 100 grids,pkg/100 657-300-AU-100 – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 300M Au grid, package of 100 grids,pkg/100 657-400-AU-100 – Quantifoil®, Orthogonal Array of 2µm Diameter Holes – 2µm Separation, mounted on a 400M Au grid, package of 100 grids,pkg/100
