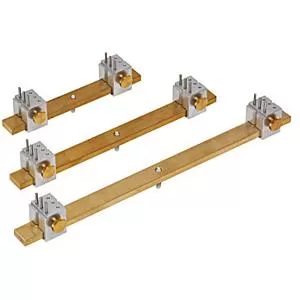

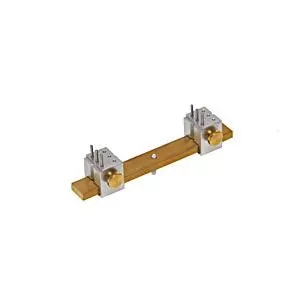

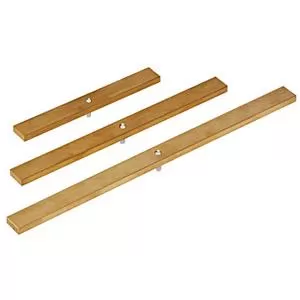

DESCRIPTION Interchangeable Modular SEM Specimen Holders This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed. The PELCO® Bar Clamp Vise is available in three lengths; 102mm (4″), 152mm (6″) and 203mm (8″) with the same clamps for each version. This bar type clamp can accommodate specimens up to 72mm (3″), 127mm (5″) and 178mm (7″) in length respectively. The jaws are reversible, offering different clamping options and they operate independently anywhere on the clamping bar. This will allow for positioning the region of interest of the specimen within the travel range of the SEM stage. Stainless steel 1/16″ pins (6 pins are included) can be placed on the clamps for awkwardly shaped samples. Clamping bars and clamps can be purchased additionally to make up the best functional set for the job at hand. Made of vacuum grade aluminum with brass bar and brass thumbscrews and stainless steel type 316 dowels. M4 threaded hole in bar. Overall size for the 102mm (4″) version: L x W x H 102 x 22 x 19mm (4″ x 7/8″ x ¾”) Overall size for the 152mm (6″) version: L x W x H 152 x 22 x 19mm (6″ x 7/8″ x ¾”) Overall size for the 203mm (8″) version: L x W x H 203 x 22 x 19mm (8″ x 7/8″ x ¾”) Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397). PELCO® Technical Notes: PELCO® Bar Clamp Vise, 4, 6, and 8″ (80KB PDF) Screws used are 4-40 x 3/8 Thumb, Brass and M2 x 3mm, Pan, Brass 15477-4 – PELCO® Bar Clamp Vise, 102mm (4″), complete with bar and two clamps, M4 15476-4 – PELCO® Bar Clamp Vise, 152mm (6″), complete with bar and two clamps, M4 15478-4 – PELCO® Bar Clamp Vise, 203mm (8″), complete with bar and two clamps, M4 15477-10 – Additional Clamp for 102mm (4″), 152mm (6″) or 203mm (8″) bar 15477-40 – Additional 102mm (4″) Bar, M4 15476-60 – Additional 152mm (6″) Bar, M4 15478-80 – Additional 203mm (8″) Bar, M4 15341-20 – Replacement Pins for Bar Clamp, 1/2″ long, pkg/10
