Description
4 levers 0.06-0.35N/m, Au Coating DESCRIPTION
TIP SPECIFICATIONS
CANTILEVER SPECIFICATIONS Au coated tips, 4 Cantilevers 0.06-0.35N/m

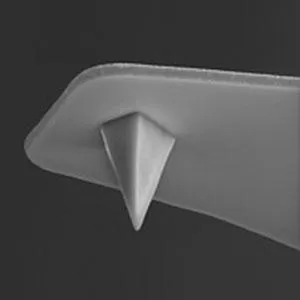

Gold coating on the tip side makes functionalizing the tip easier (e.g., using thiol chemistry). Tip Geometry:
Rotated (Symmetric) Tip Height:
2.5 – 8.0 Front Angle:
15 ± 2.5 Back Angle:
25 ± 2.5 Side Angle:
17.5 ± 2.5 Tip Radius (Nom):
30 Tip Radius (Max):
90 Tip Coating:
Gold Tip Set Back (Nom):
4 Tip Set Back( RNG):
0 – 7 Cantilever Orientation diagram can be found here. DNP probes have less than 2deg of cantilever bend. The nominal stress specification for NP probes is less than 4deg of cantilever bend. For Bruker’s Dimension SPMs, DNP is recommended. Cantilever Material:
Silicon Nitride Cantilever Thickness (Nom):
0.6 Cantilever Thickness (RNG):
0.4 – 0.7 Cantilever Geometry:
Triangular Cantilevers Number:
4 Front Side Coating:
Gold Back Side Coating:
Reflective Gold
