Description

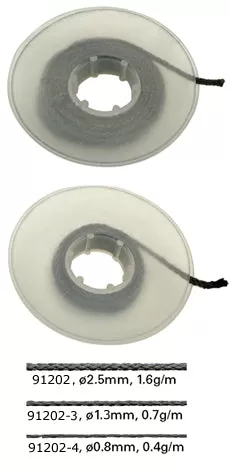

DESCRIPTION available in 3 different thread diameters These high purity carbon fiber threads or braids are used in carbon evaporators or carbon coating attachments, used on sputter coaters, designed for the use of carbon fiber. The thin carbon layer will act as a conductive layer on non-conductive samples to enable charge free imaging and EDS X-ray analysis. The carbon fiber braids, when attached properly to the holding posts, will give repeatable carbon coating thickness when the same distance from sample surface to evaporation source is used. The carbon fiber braids are processed to resist unraveling at the ends when cut to length. The special heat treatment also produces a spectrographically pure carbon fiber, with impurities only up to a maximum level of 5-10ppm which is not detectable by EDS systems. Saves the work of shaping carbon rods. The power requirement is approximately 20V/20A depending on diameter, but varies depending on the brand of coater. Please consult the instructions with the coater to determine which carbon fiber thread fits best. Purity of the carbon thread is 99.9% or better: small amount of calcium and silicon could be present. The carbon fiber threads are available in three thread diameters; 2.5, 1.3 and 0.8mm. The thicker thread with a diameter of 2.5mm and a density of 1.6g/m is widely used in general applications and gives a medium carbon layer thickness. This thicker thread is recommended for use on carbon coaters made by Cressington, Quorum Technologies, SPI, Emitech, Polaron, Fisons and Technics. The medium thread with 1.3mm diameter and a density of 0.7g/m is recommended for the same carbon coaters as mentioned above, but for applications where a thinner carbon coating is required. The carbon coating thickness can be increased by using multiple threads. The thinner thread with a diameter of 0.8mm and a density of 0.4g/m is recommended for the thinnest carbon coatings. The thinner thread also exhibits better compatibility with carbon coaters made by Fullam, Leybold, Denton and Baltec. Material Safety Data Sheet for Carbon Fiber (95KB PDF) Carbon Evaporation Rods Versus Fibers
