Description

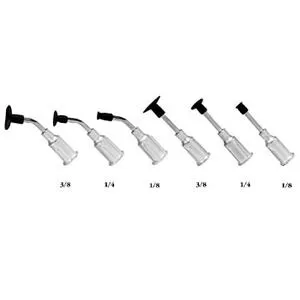

DESCRIPTION Cup diameters: 3.2mm (1/8″), 6.4mm (1/4″), 9.5mm (3/8″) Pen-Vac™, ESD-safe, Standard, 6 probes and cups 146mm (5-3/4″) long x 12.7mm (1/2″) diameter Cups can be mounted directly to the tool Brushed aluminum and clear anodized body; vacuum is generated by pressing and releasing the vacuum push bar. The sets include 6 probes and cups, two of each size cup (for cup diameters see ordering information), on one bent and one straight probe. The Buna-N cups are static dissipative and non-marking with a temperature range of -20°C to +120°C (-4° to +248°F). The cups also can be mounted directly to the tool. Recommended temperature operating range: +20 to +40° C (+68 to +104° F). ESD Safe Pen-VAC™ and cups avoid problems with static electricity and make picking up small parts easier. Comes with 6 vacuum probes that are 1/2″ long (not counting base connector); three angled and three straight. Buna-N cups are two each of 3.2, 6.4 and 9.5mm (1/8″, 1/4″, 3/8″). ESD Specifications Product
Resistivity Pen-Vac™ Body
102-106 ohms ABS Plastic Button
103-106 ohms ABS Plastic Nozzle
103-106 ohms Metal Probe
Zero Buna-N Cups
108-1011 ohms
