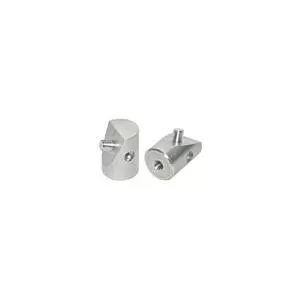

DESCRIPTION Interchangeable Modular SEM Specimen Holders This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed. 70° Pre-Tilt Holder, M4 Accepts 15mm Hitachi mounts on pin with M4 thread. Pin can be rotated and fixed for optimum position. When the pin with M4 thread is removed, this holder also accepts a standard 12.7mm (1/2″) pin stub with 3.2mm (1/8″) pin. 70° EBSD Pre-Tilt Holder w/o tilting the specimen stage. This holder is made of machined aluminum with stainless steel Allen set screw. Allen wrench included. Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397). Screw used is M3 x 3mm set screw, stainless steel.
